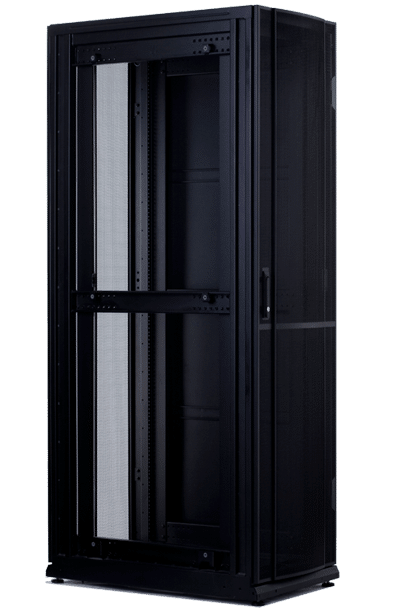

EzRak MVS - Multi Vendor Server Cabinet


Extended depth to 1000mm* and perforated doors for maximum thermal management. It is suitable for high-density servers installation with rear space for cable management.


  • Front and Rear Fully perforated metal door (options: Bi-fold / glass / curve door)
  • Doors with heavy duty robust swing handle and lock
  • 3 heights – 42U, 45U, 47U
  • 2 width options – 600mm or 800mm
  • 3 Depth options – 1000mm,1100mm or 1200mm
  • Top fan tray for 2,4 or 6 fans (Optional)
  • Cable entry points provided for top and bottom access
  • Adjustable 19″ panel mounts – Multi-Vendor Server Version
  • Spilt rear panel mounts available for multiple server depths
  • Quick release side panels, lock optional
  • Adjustable feet and heavy duty castors wheel (Options: Metal Base Plinth)
  • SWL rating to 800kg
  • Finished: Power coated paint (two tone black), RAL 1003/80143

EzRak Wall Mount Cabinet


The EzRak ® wall mount cabinet has been designed as a cost effective solution for wall mounting of networking equipment and cabling. The EzRak ® design provides a solution where side access is needed during, service and maintenance. Cable access from top and bottom is provided via removable gland plates. The wall box has pre-punched fan pattern at the top for up to two exhaust fans. Maximum versatility is provided with removable side panels and front door to ease installation


  • 4 height options – 6U, 9U, 12U, 15U
  • Depth: 500mm
  • Width: 600mm
  • Welded top and bottom frame
  • Front and side access
  • Quick release reversible safety glass door
  • Light weight strong construction
  • Adjustable 19″ panel mounts
  • Load rating of 40kg
  • Fixing kit supplied
  • Two tone grey, other colour available
  • Other sizes available upon request
  • Colour: Ral7035, RAL 7037 Two-tone grey
  • Green Coachline on glass door
  • Material: 1.2mm Electro Galvanised Steel
